Micro-Convex Color Probe with 8” Full-Touch Screen , 2-5MHz, SONOSIF offers a great image quality for all applications in daily practice. Abdominal imaging and basic cardio imaging in dogs and cats. This is the main probe that is used for small animal abdominal scanning.

Moreover, Micro-Convex Color Probe with 8” Full-Touch Screen , 2-5MHz, SONOSIF has a smaller footprint provides improved surface contact, resulting in great image quality. Imaging through small rib spaces and underneath the costal arch is also easier.



Features :

• Pocket medical smart ultrasound scanner with high speed cellular and Wifi data communication capability.
• Micro-Convex Color Probe with 8” Full-Touch Screen , 2-5MHz, SONOSIF
• Clear and rapid imaging for intervention guidance.
• Special designed full touch UI for each individual application and easy to operation without special training.
• Automatically syncing data to private cloud for telemedicine and mobile telemedicine .
• Android sw operation system to make the applications easy for extendable.
• Enables ultrasound whenever and wherever necessary.
• Detect pericardial effusion , chest fluid or internal bleeding at ER or in ambulance.
• View fetus as they grow.
• Detect fetal heart beats.
• Monitor the amount of Amniotic fluid during delivery.
• Find plaque in Carotid, avoid stroke before it strikes.
• Place lines in veins with visual confidence.
• Find nodules in thyroids, liver or breasts during screening.
• Monitor stones in kidneys, gall bladder and bladders.
• Verify bone fractures without X-ray.

    Specifications :

• CPU: 1.2GHz Quad-core Cotex A9.
• OS: Android 4.3.
• Touch screen: Capacitive TP.
• Cellular Network: Optional (3G/4G).
• Connectivity: BT 3.0 EDR, WiFi & WAPI, GPS&AGPS.
• Radio: Stereo FM radio.
• Sensor: Accelerometer, P/L sensor, E-compass, Gyroscope.
• Keypad: Power, Freeze and Gain +/-.
• Battery: 5000mAh, up to 3 hours ultrasound continuous scans.
• Dimension: 158mmx84mmx20mm.
• Product Description: Color Handheld Ultrasound Scanner.
• Monitor: 8 inches LCD High-resolution (1280*720) Full touch screen.
• Probe Type: 128 Elements (changeable).
• Frequency: 2-5 Mhz .
• Displaying Mode: B, C, M, B+B, B+M.
• Cine-loop: 1024 Frames.
• Frame Rate: Convex: <= 16fps / Linear: 24fps.
• Depth:  <= 200mm .
• Connection Interface: Micro USB2.0,HDMI, 3.5mm Headphone jack,Probe connector.
• Gain: Convex: 0~150dB / Linear: 0~120dB  (adjustable).
• Image Processing: Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc .
• Power: Built-in battery(5400mAh) to support 2h of continuous scanning.
• Image Format: JPEG , DICOM.
• Language: Over 60 different language including English, Spanish, etc .
• Measurement: Length, Area, Arrow, Angle, Perimeter, Text .
• Camera: Front camera: 2M auto / Rear camera:5M auto focus.
• Wireless connection: WIFI, BLUETOOTH, 3G/4G,(LTE/WCDMA/EDGE/GPRS/GSM).
•  Memory: 64 GB.
• Operating system: Android.
• Printer: WIFI printer.
• Cloud: Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform.
• Technical Training: Online and offline tutorial, self-built online training material.
•  Remote Software Update: YES.

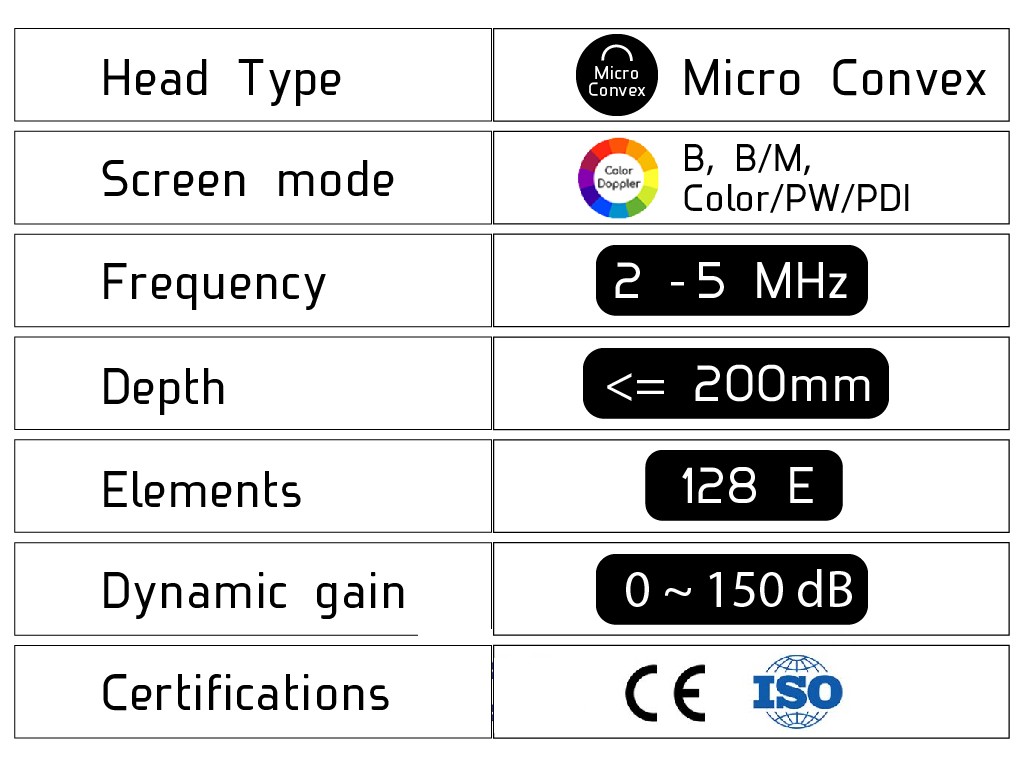

Head Type	Micro Convex probe
Screen mode	B, C, M, B+B, B+M.
Frequency	2-5MHz
Elements	128 E
Depth	<= 200mm
Applications	PICC Line Insertion, Thyroid, Breast, Vascular, Nerve, MSK (Musculoskeletal), IV intraveineous injection and plastic surgery, Joint Injections
