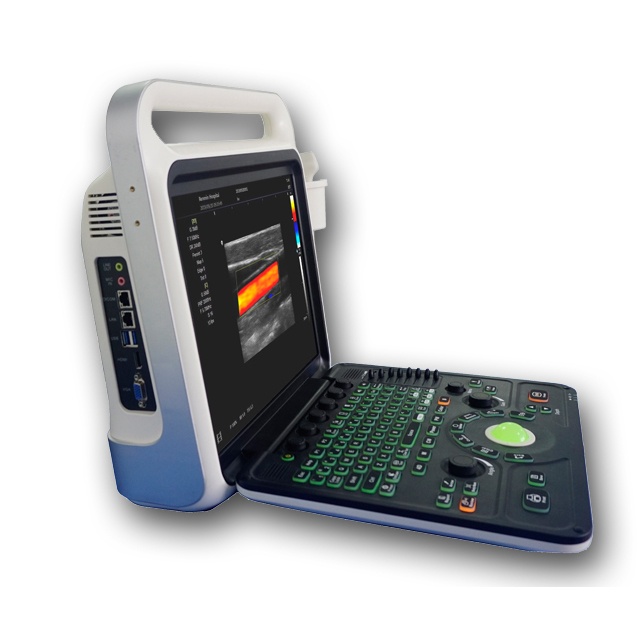

Color Doppler Laptop Convex Diagnostic Ultrasound Scanner:
CD-UL1
The color doppler ultrasound machine is a medical product that is based on high image quality. It is powerful and able to be adapted to many different functions and activities in the imaging platform with a futuristic design. Diagnostic Ultrasound Scanner: CD-UL1 has a classy look and compact, yet inclusive applications for abdomen, obstetrics, cardiac, gynecology, small parts and urology.
Through the outstanding performance, Color Doppler Laptop Convex Diagnostic Ultrasound Scanner: CD-UL1 gives you the best solution for ultrasound imaging.
With Color Doppler Laptop Convex Diagnostic Ultrasound Scanner: CD-UL1 you can measure each organ at a time with detailed specifications. Diagnostic Ultrasound Scanner CD-UL1 Shows you the Distance, circumference, area, volume, angle, ratio, and stenos rate. For the M mode routine measurement CD-UL1 shows you the Heart rate, time, distance, speed, ratio, etc.
For the Gynecology measurement IT shows you the Uterus, cervix, endometrial, ovary, follicular.. For example, in the Obstetrics measurement it shows you EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables). In the Cardiology case it shows you LV measurement. For the Urology measurement It shows you Prostate volume, displacement volume, bladder capacity, and residual urine output, and in the PW measurements it gives you the Time, speed, Heart Rate, RI, PI, etc.
Color Doppler Laptop Convex Diagnostic Ultrasound Scanner: CD-UL1 also has other measurement like Slice volume measurement, hip joint angle measurement…

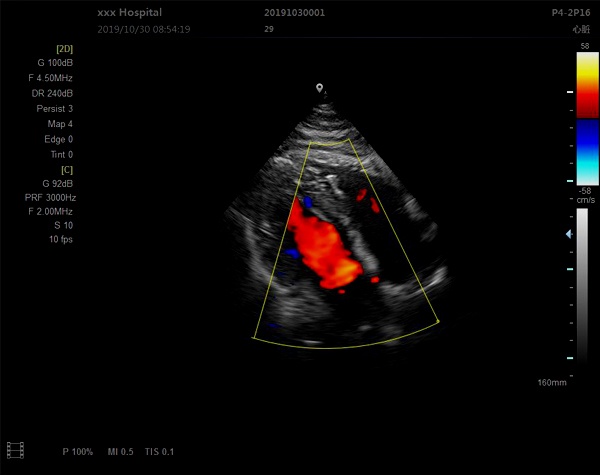

Color Doppler Mode is needed to:
- Give a visual overview of flow within the vessel or heart.
- Rapid identification of vessels, valves, turbulent flow.
- Evaluate flow direction and velocity.
- Measure volume and percent vascularity when combined with 3D Mode.
- Guidance for reproducible quantification of flow velocities using Pulsed-Wave Doppler.
- Locate area of stenosis or thrombosis.
- Determine the existence and amount of arterial plaques and associated turbulent flow.
- Find small vessels such as mouse coronary arteries, femoral and arcuate arteries.
- Evaluate blood flow after a stroke or other cases due to impaired blood flow.
- Observe blood flow to major organs such as heart, kidney, liver pancreas, carotid, abdominal aorta, and others.
This machine is given with a free convex probe and many other optional probes.
The Convex Probe:
Convex: R60 (R50) Center frequency: 3.5MHz (range: 2-6MHz).

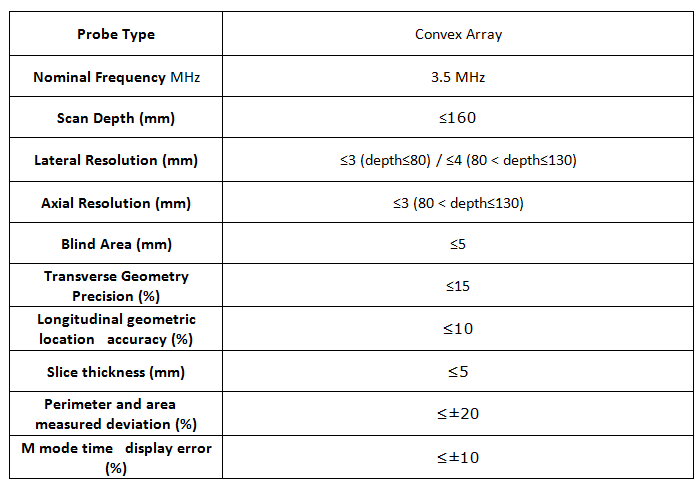

The Main Technical Indexes of the Gray-scale imaging mode requirements performance:

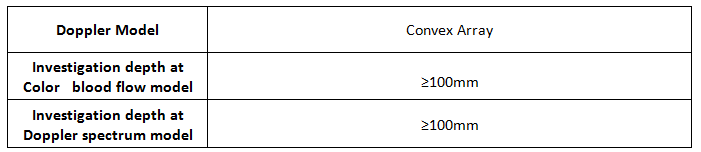

The Main Technical Indexes of the color Doppler imaging mode requirements performance:
- Color blood flow image is essential with the gray-scale image of pipes.
- Blood flow direction is identified, no aliasing phenomenon.
The Main Technical Indexes of the Doppler spectrum mode requirements performance:
Other Probes:
- Linear: Center Frequency 7.5MHz (Range: 5-12MHz)
- Cavity probe(TVS): center frequency 6.5MHz (range: 5-10MHz)
- Micro-convex: center frequency 3.5MHz (range: 3-6MHz)
- High-frequency micro-convex probe: the center frequency of 5MHz (range: 4-8MHz)
- Phased array probe: center frequency 3Mhz(range:2-5Mhz)
- 4D probe: Center frequency 3 MHz (range: 2-5MHz)

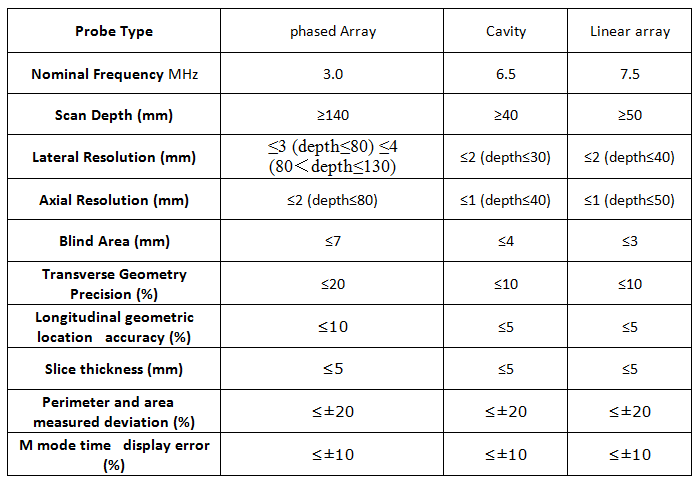

The Main Technical Indexes of the Gray-scale imaging mode requirements performance:
The Main Technical Indexes of the color Doppler imaging mode requirements performance:
- Color blood flow image is essential with the gray-scale image of pipes.
- Blood flow direction is identified, no aliasing phenomenon.

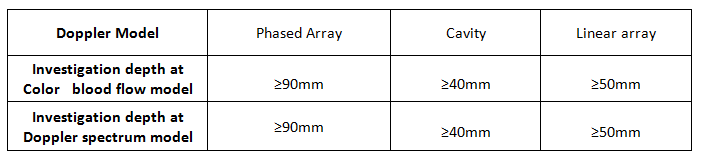

The Main Technical Indexes of the Doppler spectrum mode requirements performance:
Features:
- 15-inch LCD display with up and down adjustment

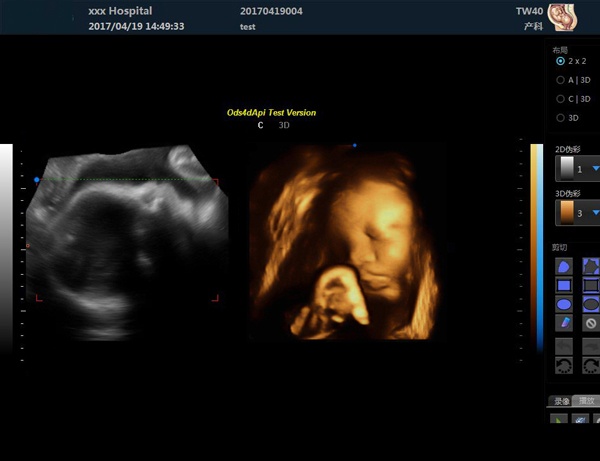

- Optional 3D or 4D
- Compact fuselage, easy to move
- Flexible lifting panel
- Two-level backlit keyboard, more convenient to operate
- lt can meet the needs of clinical diagnosis and improve the confidence of diagnosis.
- Broadband frequency shift harmonic imaging
- It can effectively reduce noise and improve contrast resolution
- Intelligent speckle noise suppression imaging
- Intelligent space composite imaging
- Having a full digital beam forming technology
Specifications:
- Convex: R60 (R50) Center frequency 3.5MHz (range: 2-6MHz).
- Displayer: 15 inch LCD color display.
- Running hours: ≥8h.
- Input power: ≤320V.
- Host weight: about 7 kg.
- Host appearance size: 380 ×212×390(length × width × height) (mm3).
- Dynamic range: 0~120dB adjustable.
- Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW,CW etc… mode.
- Application mode: abdomen, kidneys, urinary system, obstetrics, gynecology, pelvic, small organ, muscle tissue, organ, breast, heart and other 11 kinds of models.
- Image mode: digital beam forming, tissue harmonic imaging.
- IMT: Automatic measurement and analysis vascular intima.
- Acoustic output: Mechanical index and thermal index real-time display.
- Acoustic power: Step is adjustable, real-time display.
- Gray scale: 256 scales.
- Depth display: ≥250mm.
- B/D triple-purpose: linear array: B/PW D; convex array: B/PW D.
- Pseudo color processing: 16 kinds of pseudo color encoding can optional.
- Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically.
- Image magnification: picture in picture zoom in and zoom part function.

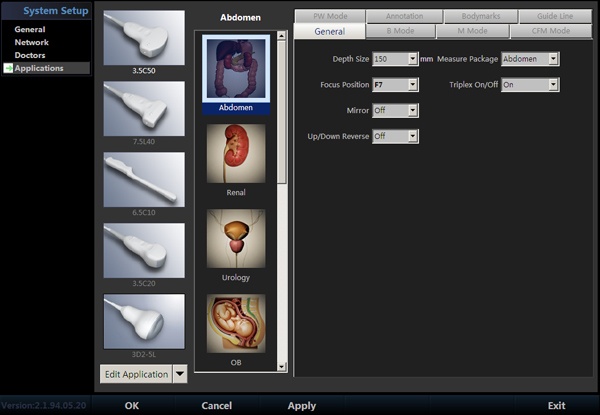

- Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best image check condition, reduce the adjusting operation keys.
- One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image fast optimization.
Image storage:
Image storage: video storage, cine loop, disk storage.
Capacity: ≥160G.
Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB, Optional DVD-RW),built-in ultrasound workstation.
Applications:
abdomen, kidneys, urinary system, obstetrics, gynecology, pelvic, small organ, muscle tissue, organ, breast, heart and other 11 kinds of models.
Doctor Specialties:
CD-UL1 is used by MSK doctors, Speech Therapists, Cardiologists, Gastroenterologists, Geriatric specialists, Gynecologists’, GO Doctors, Hematologists, Neonatologists, Nephrologists, Obstetricians, Pediatricians, Pulmonologists, Radiologists, Urologists, Surgeons..
