3 in 1 Color Doppler Wireless Ultrasound Scanner 3in1-CLC3CD

3 in 1 Color Doppler Wireless Ultrasound Scanner

3in1-CLC3CD

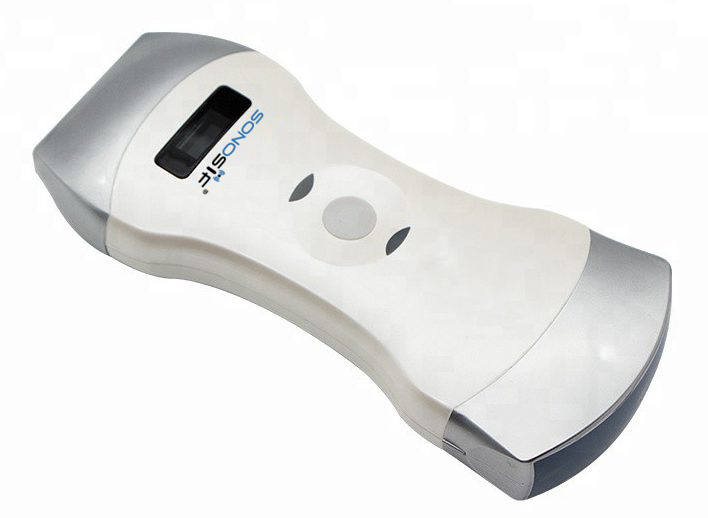

The 3 in 1 Color Doppler Wireless Ultrasound Scanner 3in1-CLC3CD includes Convex, Linear, and Phased Array scan modes all in one probe. In addition, the Ultrasound Probe 3in1-CLC3CD works on iOS, Android, and Windows. There is no need to change the ultrasound machine’s head. This can be done by simply changing the software. SIFSOF’s engineer team developed this portable ultrasound machine in a way for it to be easy and convenient to use.

The 3 in 1 Color Doppler portable ultrasound machine 3in1-CLC3CD is a highly versatile device. It serves various medical practitioners and fields.

Wireless Ultrasound scannner 3in1-CLC3CD provides qualitative and quantitative data. Thanks to its smaller footprint it aids in the evaluation of soft tissues, joints, nerves, and muscles. Further, this multi-uses handheld ultrasound machine is also a highly effective POC ultrasound scanner.

In brief, The 3in1-CLC3CD serves as the perfect portable ultrasound machine in any medical facility. Thanks to its easy-to-use interface, no special training is required to use the SIFULTRAS-3.32. It is lightweight, easy to carry and easy to use.

This Color Doppler 3in1 Ultrasound is a handheld ultrasound machine that can be used in Gynecology, Cardiology, Obstetrics, Urology,  Anesthesiology And Vascular Surgery…

• Give a visual overview of flow within the vessel or heart.
• Rapid identification of vessels, valves, turbulent flow.
• Evaluate flow direction and velocity.
• Guidance for reproducible quantification of flow velocities using Pulsed-Wave Doppler.
• Locate the area of stenosis or thrombosis.
• Determine the existence and amount of arterial plaques and associated turbulent flow.
• Find small vessels such as mouse coronary arteries, femoral and arcuate arteries.
• Evaluate blood flow after a stroke or other cases due to impaired blood flow.
• Observe blood flow to major organs such as heart, kidney, liver pancreas, carotid, abdominal aorta, and others.

Uses of the Color Doppler Wireless Ultrasound Scanner 3in1-CLC3CD3in1-CLC3CD:



In Obstetrics And Gynecology:

The Doctor can use the Wireless Ultrasound scannner  3 in 1 Ultrasound Device To:

• Create Real-Time Visual Images Of The Developing Embryo Or Fetus In Its Mother’s Uterus.
• Determine the timing and progress of the pregnancy.
• Perform Fetal Morphology Assessments.
• Follow up on the health and development of the embryo or fetus.



In Vascular Surgery:

• Evaluate the body’s circulatory system.
• Helps Identify Blockages In The Arteries And Veins.
• Helps The Doctor Detect Blood Clots.


  ultrasound machine

  In Cardiology:

• Evaluating the structure and function of the heart and associated vessels.
• Color Doppler feature in ultrasound enables measuring of the velocity & direction of blood flow inside the various heart vessels and their chambers.
• Determine the ratio of blood velocity of the heart’s mitral valve and mitral annulus.

In Anesthesia And Intensive Care:

• Guidance for difficult venous access.
• Epidural space identification in cases of difficult anatomy.
• Delineating Nerve Plexuses for Chronic Nerve Blocks.
• For Regional Anesthesia.
• Ultrasound-Guided Needle Insertions.

  In Urology:

• Evaluation of Infertility.
• Evaluation of the Female Urethra
• Produce Images of the kidneys and bladder. It’s useful for checking birth defects of the urinary tract.
• Evaluation of blood flow in urological organs.

       Features of 3in1-CLC3CD:

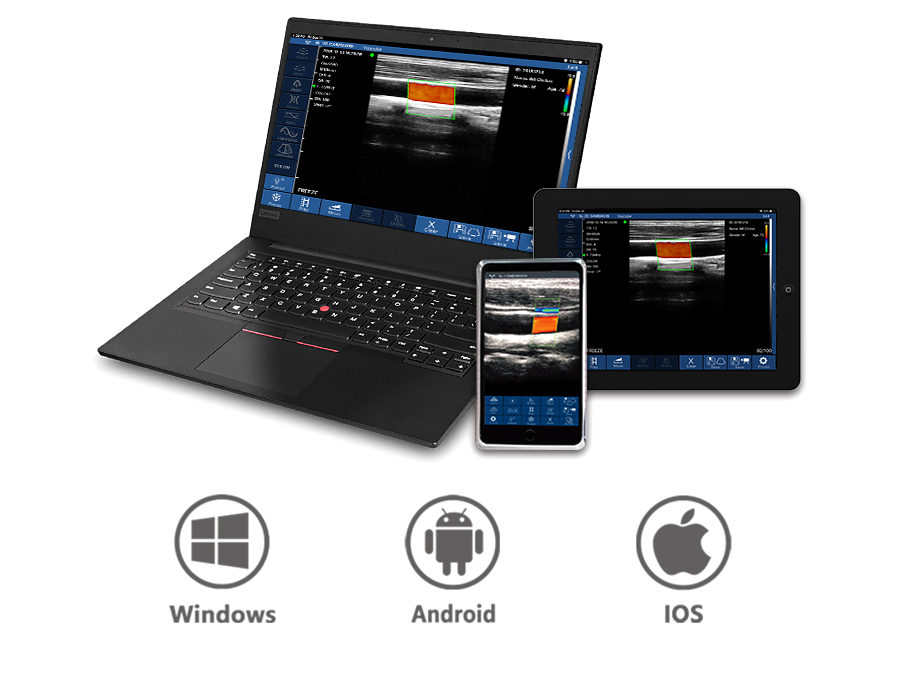

• Working System: Apple iOS and Android, Windows.

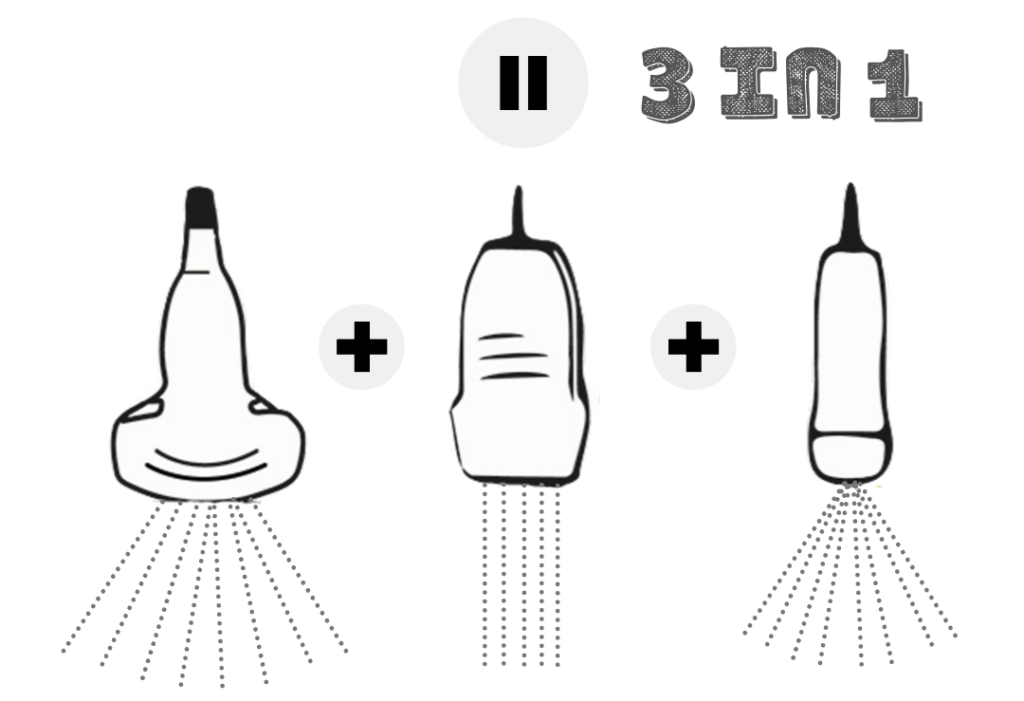

• 3 Scanning Modes: Convex , Linear , Phased Array.
• Rechargeable by Wireless Charger (2 Hours).
• Puncture Assist Feature (Needle Point Guide).
• Easy to Use.
• Light-Weight Device.

Wireless Ultrasound Scanner 3in1-CLC3CD Specifications:

• Scanning Mode: Electronic Array.
• Elements: 192.
• Display Mode: B, BM, And Color, PW, PDI.
• Display Depth: Convex 90/160/220/305mm // Linear 20/40/60/100mm.
• Scan Angle And Width: Convex 50 Degrees // Linear 40mm // Phased Array 80 Degrees.
• Frequency: Convex Probe 3.5/5MHz // Linear Probe 7.5/10MHz.
• Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise.
• Measures: Length, Area, Angle, Obstetrics.
• Frame Rate: 18 Frames/Second.
• Battery Life: 3 Hours.
• Dimensions: 156 * 60 * 20mm.
• Weight: 220g.

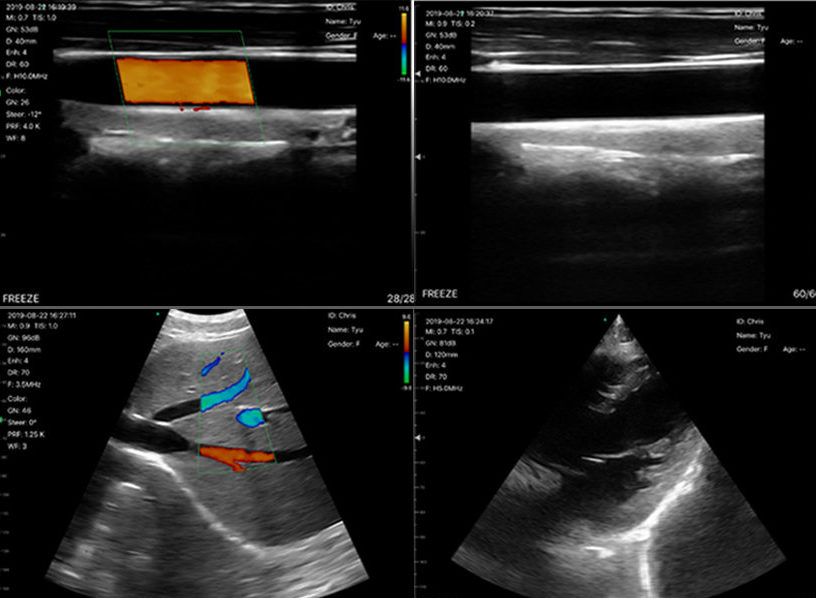

Scan Results:
