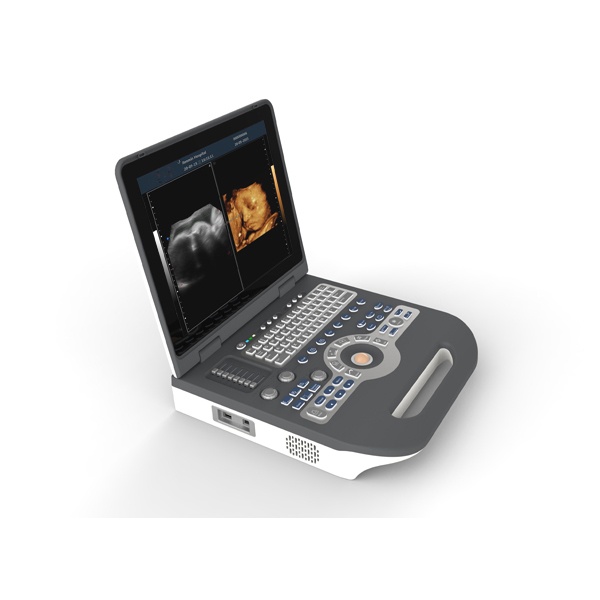

Ultrasound Scanner Notebook Color Doppler CD-UL2





The Ultrasound Scanner Notebook Color Doppler CD-UL2 is based on the high imaging quality of the medical technology products. It is powerful and able to be adapted to many different functions and activities.

This Diagnostic Notebook has a vigorous function with all the optional probes that support his power, rich image conversion, and adjust package software, Clair blood flow image. Not to mention the additional functions like adding PW envelope, mode of three images as well as practical features like real-time synchronization.

Ultrasound Scanner Notebook Color Doppler CD-UL2 with its Classy look and compact is easy to care as it has a portable feature, it has also a hard disk static and dynamic image storage of 120G capacity and 4 Input/output interface: HDMI port, video input/output port, S-VGA, print port, DICOM 3.0, USB port.

With Ultrasound Scanner Notebook Color Doppler CD-UL2  you can measure each organ at a time with detailed specifications. Diagnostic Ultrasound Scanner CD-UL2  has multiple measurement and analysis: General Measurement, OB and GYN, Cardiac Function, Doppler Blood Flow, Peripheral Blood Vessel, Urology, Orthopedic, Automatic Doppler Flow.

Not to mention that the Users can program protocol numbers, formulas, and tables as well as writing Diagnostic report, and add the ultrasound diagnostic image to the report, and print directly.

This Notebook is most used for the examination of the abdomen, Heart, Urology, Obstetrics, Gynecology, Small Organs, Andrology, Musculoskeletal, vascular…

• Give a visual overview of flow within the vessel or heart.
• Rapid identification of vessels, valves, turbulent flow.
• Evaluate flow direction and velocity.
• Measure volume and percent vascularity when combined with 3D Mode.
• Guidance for reproducible quantification of flow velocities using Pulsed-Wave Doppler.
• Locate the area of stenosis or thrombosis.
• Determine the existence and amount of arterial plaques and associated turbulent flow.
• Find small vessels such as mouse coronary arteries, femoral and arcuate arteries.
• Evaluate blood flow after a stroke or other cases due to impaired blood flow.
• Observe blood flow to major organs such as heart, kidney, liver pancreas, carotid, abdominal aorta, and others.

This machine is given with a free convex probe and many other optional probes.

The Convex Probe:

Convex probe frequency: 2 – 5 MHZ (multi-frequency, Harmonic frequency ≥5 ), probe scanning angle 20°~85°, visible and adjustable.

The Main Technical Indexes of  the Gray-scale imaging mode requirements performance:

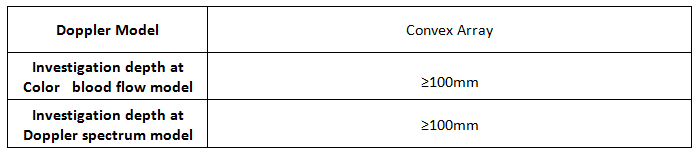

The Main Technical Indexes of  the color Doppler imaging mode requirements performance:

• Color blood flow image is essential with the gray-scale image of pipes.
• Blood flow direction is identified, with no aliasing phenomenon.

Other Probes:

•  Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic frequency ≥4 ), probe scanning with trapezoidal imaging technology, and 2D beam deflection technology.
• Transvaginal probe frequency: 5.0-8.0MHZ(multi-frequency, harmonic frequency ≥2 ), probe scanning angle 20°~160°, visible and adjustable.
• Real time 3D (4D) volume probe frequency: 2.0-5.0MHz, 4 segments multi-frequency.
• Micri-convex probe frequency: 4.0-6.0MHz, 3 segments multi-frequency.

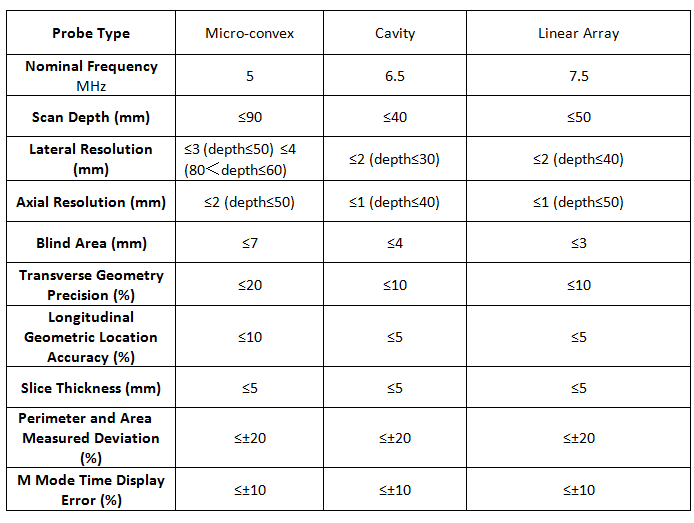

The Main Technical Indexes of  the Gray-scale imaging mode requirements performance:

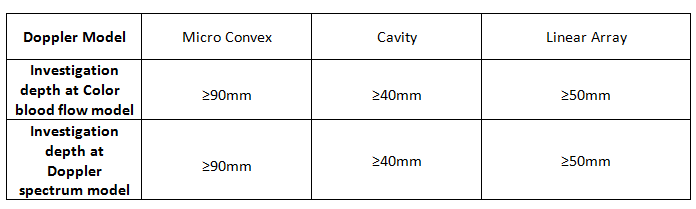

The Main Technical Indexes of  the Color Doppler Imaging mode requirements performance:

• Color blood flow image is essential with the gray-scale image of pipes.
• Blood flow direction is identified, with no aliasing phenomenon.

The Main Technical Indexes of  the Doppler spectrum mode requirements performance:

Pulse wave Doppler mode sampling area cursor position is accurate

• Convex: R60 (R50) Center frequency 3.5MHz (range: 2-6MHz).
• Displayed: 15 inch LCD color display.
• Running hours: ≥8h.
• Input power: ≤300VA.
• Host weight: about 6 kg.
• Host appearance size: 370 ×382×90(length × width × height) (mm3).
• Two USB ports.
• S video output port.
• 2D,B/M,PDI,PW,CFM,4D, imaging mode.
• Grayscale: 256.
• Gray Map: ≥16 levels, visible and adjustable.
• Dynamic range: 60-240db(visible and adjustable).
• Resolution: Horizontal≤1mm; Vertical≤0.5mm.
• Under B mode, focus number: 1-6, focus position continuously adjustable.
• STC gain control: ≥8  segments.
• THI: harmonic frequency ≥2  segments.
• Line density: ≥256, visible, and adjustable.
• Preset: ≥40 kinds, users can customize the inspection conditions for the optimized images of different organs.
• Max scanning depth: ≥775px, visible and adjustable.
• Scanning angle: 50°-100°, visible, and adjustable.
• Cine loop: ≥4800 frames.
• Adaptive speckle suppression: 0-100 adjustable.
• Amplification: overall amplification, local amplification, M-type amplification(do M-type sampling amplification under both scannings or freeze state).
• Color gain: adjustable.
• Color frequency: ≥3 kinds, visible and adjustable.
• Sampling frame: size and position adjustable.
• PW  blood flow measurement speed: min speed: ≤0.2 cm/s, max speed: ≥37500px/s.
• PW  Doppler frequency: ≥3  kinds, CW Doppler frequency: ≥15 kinds, visible and adjustable.
• Real-time automatic Doppler envelope mapping and automatic measurement and analysis.

       Applications:

This Notebook is most used for the examination of the abdomen, Heart, Urology, Obstetrics, Gynecology, Small Organs, Andrology, Musculoskeletal, vascular…

Doctor Specialities:

Ultrasound Scanner Notebook Color Doppler CD-UL2  is used by MSK doctors, Cardiologists, Gastroenterologists, Gynecologists, Doctors, Neonatologists, Nephrologists, Obstetricians, Pediatricians, Radiologists, Urologists, Surgeons, Vascular Doctors, Andrologists…

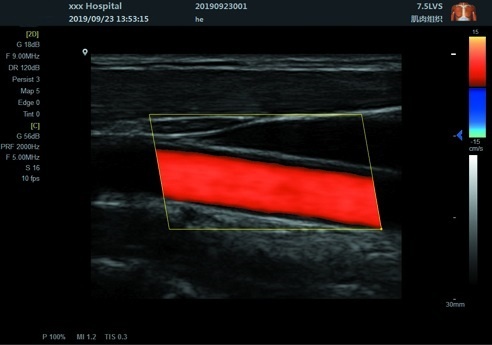

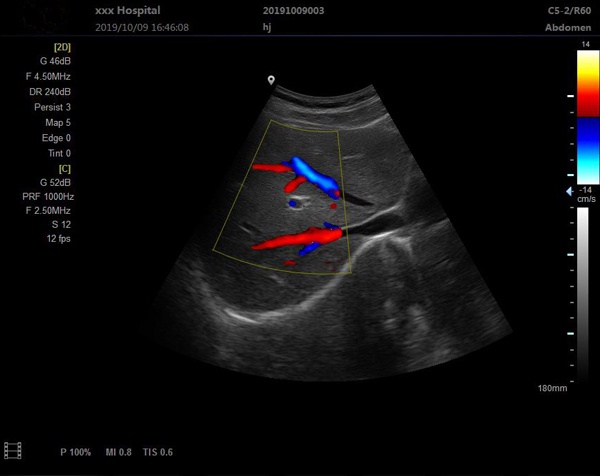

Scan Results
